Kansetsu International Co.,Ltd.
 　　　　　　　　　　　　
Mist Eliminator
KIMRE B-GON®

Mist in the flue gas causes various problems, such as loss of material, air pollution, and increase of chemical consumption as neutralizer. Patented B-GON® Mist Eliminator (Demister) of KIMRE INC. in the U.S.A. is sure to solve all of these problems. More than 99% of collection efficiency can be obtained at 2-3μm, which is difficult to achieve by traditional knitted-mesh pad.

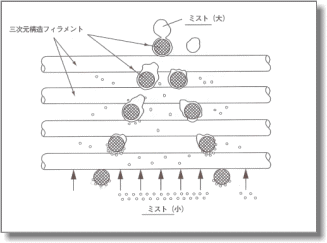

As seen on the above picture, the material has been described as ladder-like or honeycomb-like and is comprised of plastic monofilaments. Since most of the fibers are perpendicular to the gas flow, mist separation efficiency is excellent.

Features
High Corrosion Resistance, High Temperature Resistance
1. Polypropylene up to 82℃.
2. High Temperature Polypropylene up to 107℃.
3. KYNAR®(PVDF) up to 112℃.
4. Teflon® ETFE up to 150℃.
5. Teflon® PFA up to 204℃.

Light & Flexible
1. Easy to install, can be transported while being fitted to tower in the plant.
2. Simple grid structure.

Contribute to Easy Design of Tower
1. One piece can be made up to 1,800mm-length.
2. Easy to prevent for bypassing.
3. Does not cause damage to the Glass-lining (Teflon-lining) tower.

Guarantee High Performance
1. Does not cause channeling.
2. Able to collect small mist (0.5 ～ 0.7μm).
3. Very low pressure drop compared with Knitted mesh, chevron, cyclone and candle type.
4. Very high collection efficiency.

Easy Maintenance
Able to clean for a short time with high-pressure water hose without removing from the tower.

Teflon® is a registered trademark of the Du Pont Company.
B-GON® is a registered trademark of KIMRE INC.
KYNAR® is a registered trademark of Pennwalt Corporation.
